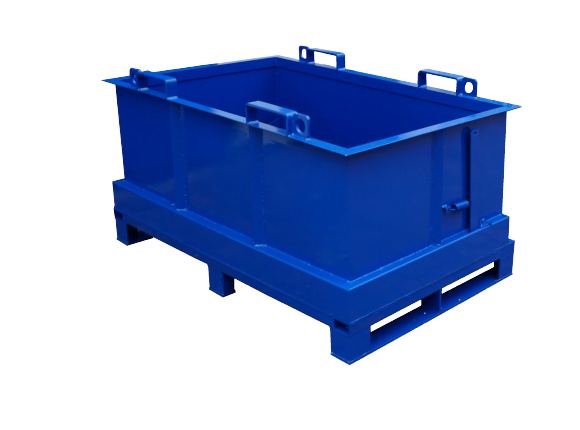

Drop-bottom container PMD 1000

Description

The PMD 1000 drop-bottom container is a high-capacity industrial skip designed for tasks requiring the transport of large volumes of material. It is a dedicated solution for enterprises needing a universal logistical tool compatible with forklifts, manual pallet trucks, and overhead cranes.

Solid construction for heavy loads

Due to its larger capacity, the PMD 1000 model has been engineered with an emphasis on structural strength. The bin walls are made of 3mm steel plate, while the key load-bearing elements in the base are reinforced with steel ranging from 3mm to 8mm thick and a system of flat bars. This construction prevents deformation even when fully loaded with heavy production waste or scrap. The durability of the coating is ensured by a double-layer paint system (primer + polyurethane paint), protecting the steel against corrosion.

Functionality: Drop bottom

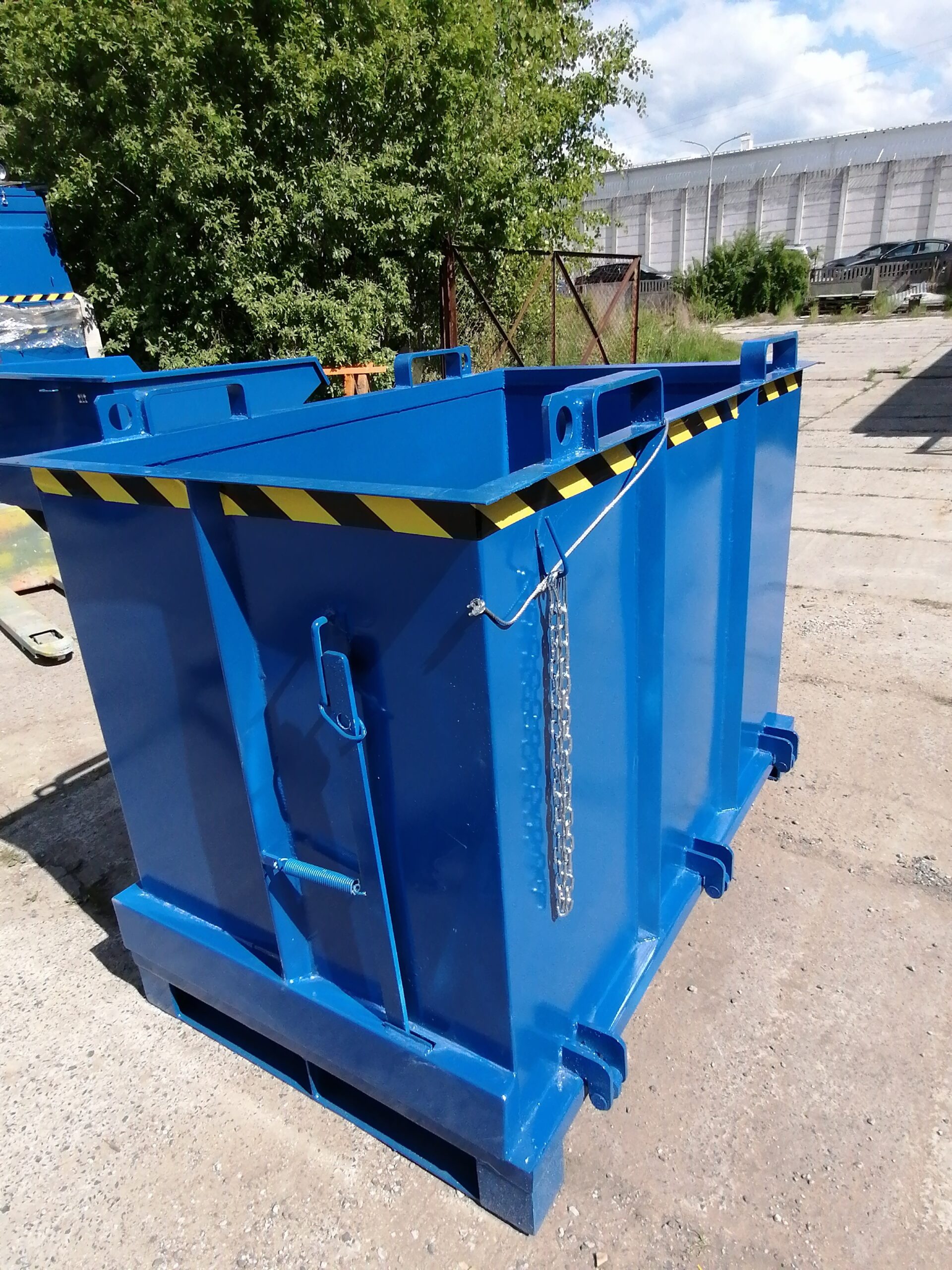

The container is equipped with an efficient discharge system via a drop bottom. This mechanism, controlled by an ergonomically placed lever on the side wall, allows for the quick and safe emptying of the skip over the target container or storage area. Additionally, the top edges are equipped with heavy-duty lifting eyes and handles, enabling short-distance transport using a crane.

Technical Specification:

• Material: 3 mm steel plate (bin), 3–8 mm (base)

• Discharge system: Drop bottom (side lever)

• Reinforcements: Flat bar construction, additional side welds

• Transport: Adapted for forklifts, pallet trucks, and cranes

• Coating: Polyurethane painting (anti-corrosion protection)

Choose the PMD 1000 container to maximise the efficiency of warehouse processes while maintaining the highest safety standards.
