Item no. STOJAK-L-LS150L-Type transport rack – Model LS150
Secure your joinery transport with the single-sided L-Type transport rack – Model LS150. This is a painted structure with a load capacity of 2,000 kg, equipped with a beam that allows for the transport of oversized heights.
Quoted individually – depending on size, finish and equipment.
Ships in approx. 15 working days – made to order
- Buy from the manufacturer – no middlemen, straight from our plant
- Your RAL colour – add it in the order notes
- VAT invoice – reverse charge for EU companies
- Expert advice – Mon–Fri, in English, German, Czech and Polish
Same design – choose your size

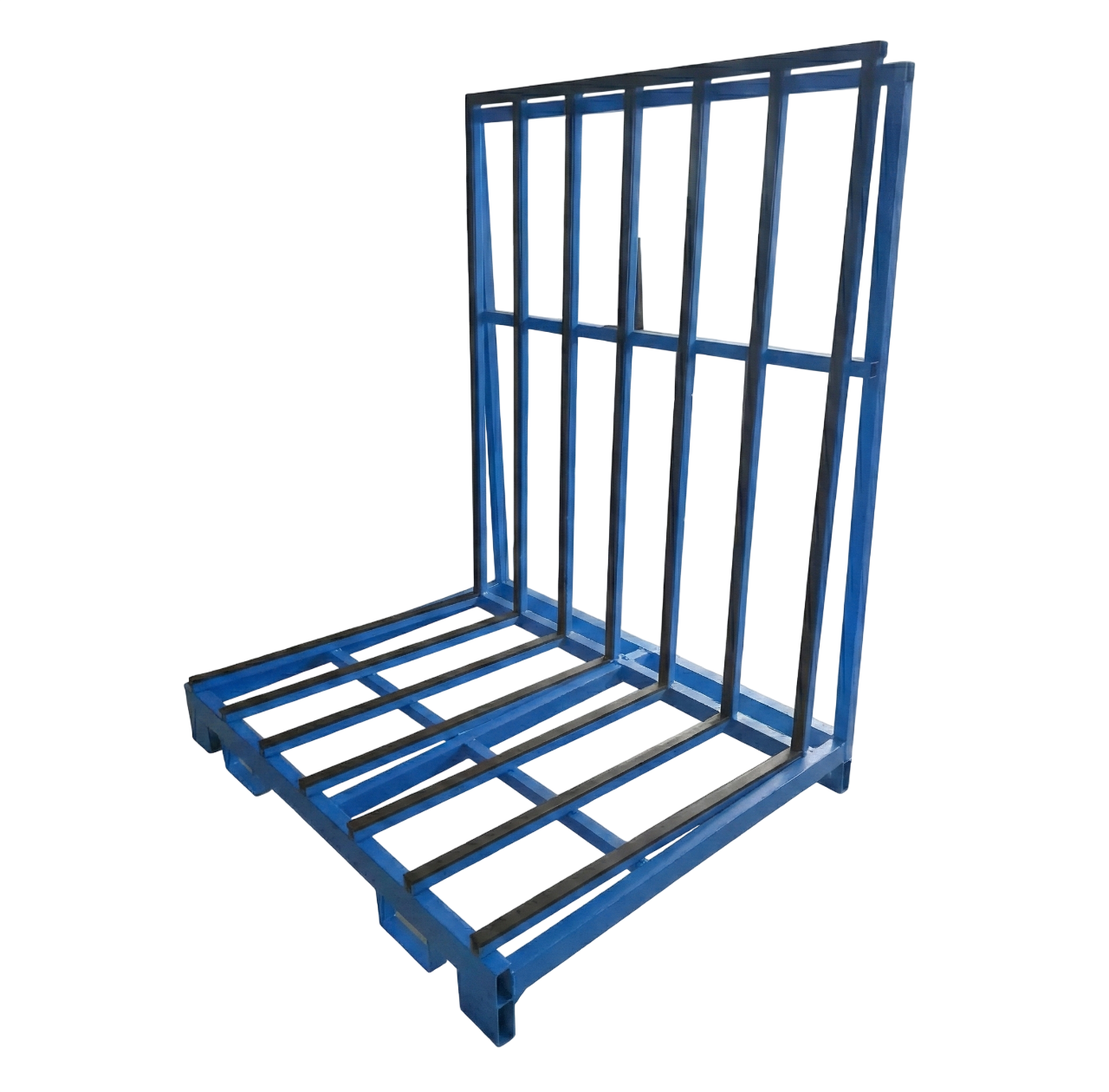

L-Type transport rack – Model LS150
The L-Type transport rack – Model LS150 is a professional single-sided structure designed for the transport of windows, doors, furniture boards, and glass sheets. Thanks to its characteristic "L" shape, this rack allows the load to rest securely at the correct angle, ensuring stability both in the warehouse and on a delivery vehicle.
Technical parameters of the LS150 model
Despite its compact dimensions, Model LS150 is a true workhorse. Its total length is 1,500 mm, making it an ideal solution for handling standard window and door units. The structure weighs only 87 kg, which facilitates maneuvering the empty rack, yet its robustness allows for the transport of loads with a total mass of up to 2,000 kg.
The loading space dimensions have been optimised for maximum utility. The loading width is approximately 1,000 mm with a total base width of 1,200 mm. The total height of the rack is 1,800 mm, of which the effective support height is 1,640 mm.
Unique design with a crowning beam
What distinguishes the L-Type transport rack – Model LS150 is the clever design of the upper part of the frame. The structure is equipped with a crowning beam with a gasket. This is a key functionality that allows for the transport of elements taller than the rack itself. Because the top edge is protected, high window frames or boards can safely protrude above the outline of the structure without the risk of damage against steel components.
Transport and stabilisation system
Warehouse logistics with the LS150 model is simple and safe. The base of the rack is equipped with 4 solid forklift handles, enabling stable lifting and movement of the loaded structure. Once placed at its destination, stability is provided by 4 stabilising legs, which guarantee that the rack will not tilt even under full single-sided load.
Load protection and finishing aesthetics
Unlike raw galvanised structures, this model focuses on aesthetics and visibility. The rack is painted with a primer and topcoat according to the RAL palette. This ensures not only an attractive appearance but also effective anti-corrosion protection.
Working surfaces in contact with delicate cargo (glass, varnished wood, or aluminium) are carefully protected:
Vertical support: Equipped with black chamber gaskets that absorb shocks during transit.
Horizontal base: Lined with durable solid PVC gaskets that prevent the goods from shifting and protect their bottom edges.
Each product is fitted with a manufacturer's data plate, confirming its quality and technical parameters.
Product application:
LS150 model is great as:
Expedition rack for window and door manufacturers.
Equipment for installers (easy transport on smaller vehicles).
Buffer storage for production lines.
Rack for storing stone slabs, furniture boards, and sintered stone.
L-Type transport rack – Model LS150
Any RAL colour – painted in-house
Choose a standard colour or give us your RAL number. We powder-coat in our own plant.
From every angle
Swipe or scroll →
Delivery and payment
Made to order. We confirm the dispatch date with your order.
Kerbside delivery, the driver calls ahead. Unloading by forklift on your side.
Free of charge, by appointment.
Secure online payment (Stripe). Invoice in EUR.
Questions or need a different size?
Our adviser replies within one working day – in English, German, Czech or Polish.
