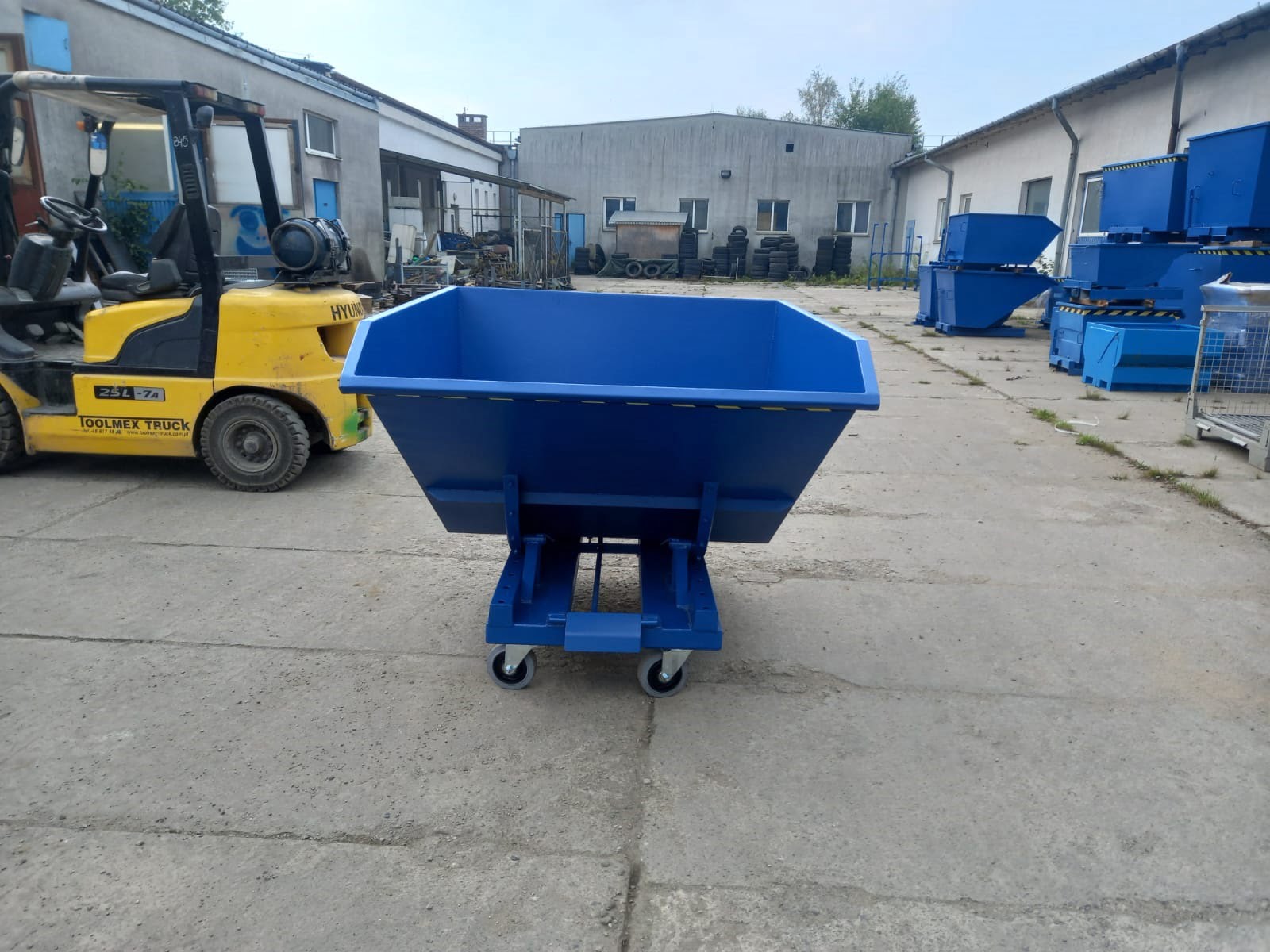

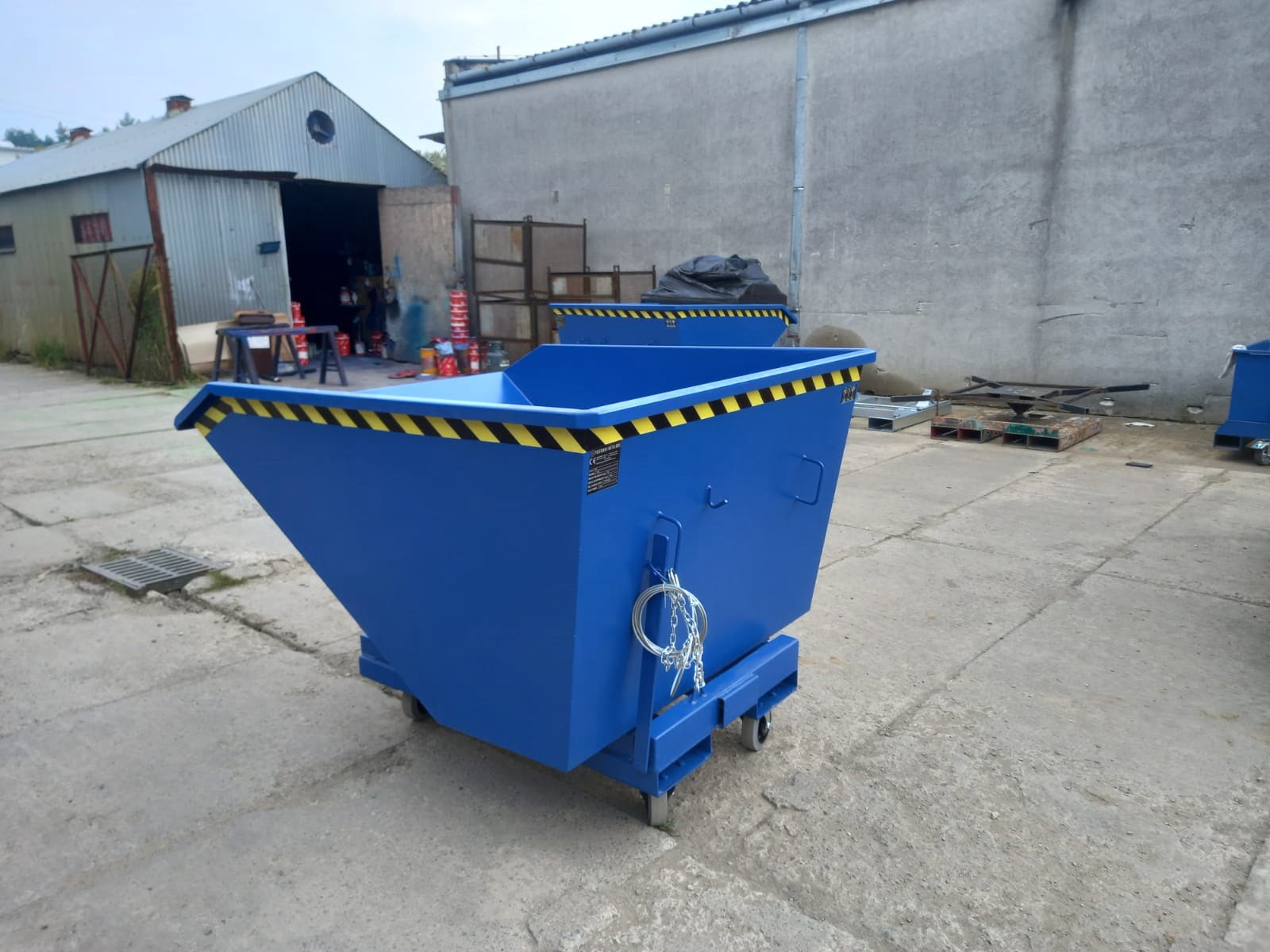

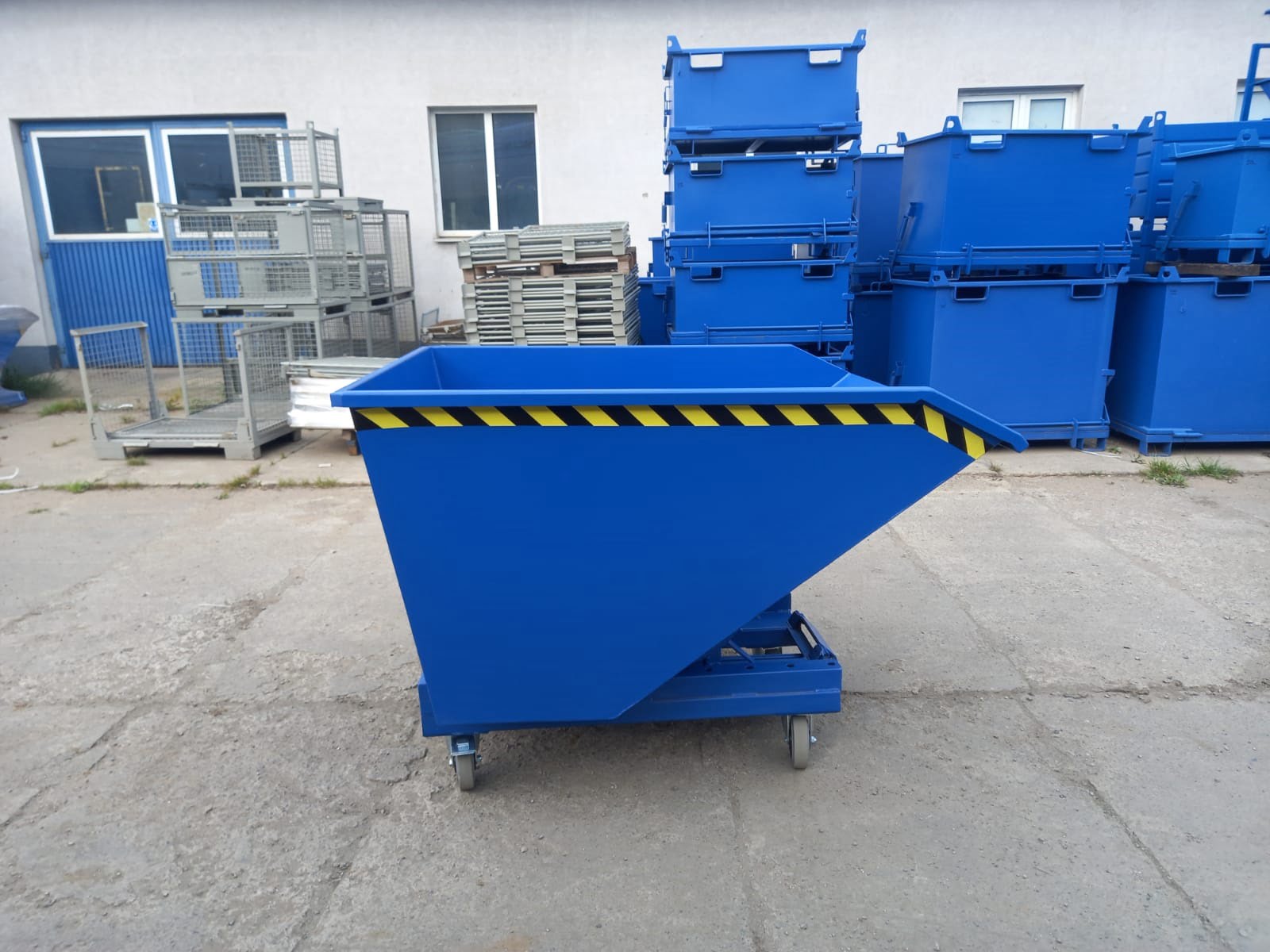

Self-tipping skip NTK HD 900

Description

The NTK HD 900 self-tipping skip is an industrial-grade solution designed for companies needing a compromise between high capacity and compact external dimensions. This model, with a 900-litre capacity and an impressive load rating of 1,200 kg, is the ideal tool for streamlining waste management, bulk transport, and scrap segregation in production plants. The HD (Heavy Duty) series guarantees that this attachment will withstand significantly more than standard containers available on the market.

Robust construction and technical parameters of the HD 900

What sets this model apart is its armoured build, adapted for heavy loads. The NTK HD 900 self-tipping skip is manufactured from high-grade 3mm steel plate in the hopper section, while the base – the key load-bearing element – is reinforced with 4mm steel.

Despite its large capacity, the container maintains optimal operational dimensions: 1,580 mm in length, 1,390 mm in width, and 995 mm in height. This allows for free forklift manoeuvring even in narrower warehouse aisles while maintaining a large loading space. The entire structure weighs 165 kg, testifying to the robustness of the materials used. Additionally, the top edge is reinforced with a wrap-around profile, which prevents wall deformation when fully loaded with heavy goods.

Leak-proof integrity and industrial applications

The container is double-sided welded, ensuring 100% leak-proof seams. Consequently, the NTK HD 900 self-tipping skip is a versatile tool suitable for transporting:

• Oily steel and aluminium swarf (without the risk of coolant leaking onto the floor),

• Sludges and semi-liquid waste,

• Wet sand, concrete, or rubble,

• Scrap, glass, and plastics.

Dual discharge mechanism – Two operational modes

Operator ergonomics are key to warehouse efficiency. Therefore, the skip is equipped with two independent emptying systems that can be adapted to the specifics of the task:

1. Front Pressure Plate (Automatic mode): Enables hands-free discharge. The operator presses the pressure plate (located at the front of the skip) against the edge of the main container, releasing the lock. There is no need to leave the forklift cab.

2. Manual Lever (Manual mode): A lever located on the rear wall allows for manual release of the lock, which is useful for precisely discharging contents in non-standard locations.

The system is designed so that after emptying the load, the empty container automatically returns to its starting position and locks, ready for further work.

Why is the NTK HD 900 self-tipping skip an investment for years?

In addition to the armoured steel, the key to longevity is the protective coating. The hopper is spray-painted with polyurethane paint. Unlike ordinary anti-corrosion paints, polyurethane creates a hard, smooth coating resistant to mechanical damage, oils, greases, and variable weather conditions. The “easy-clean” smooth surface ensures that material residues do not stick to the walls, making it easier to maintain cleanliness.
