Self-tipping skip PMUC 300

Description

The PMUC 300 self-tipping skip is a specialised, low-profile forklift container designed for waste collection in areas with restricted space. Thanks to its unique design, it is the number one solution for servicing machining stations, fitting perfectly under CNC chip conveyors and other low-slung industrial equipment.

Armoured construction and leak-proof integrity

The container stands out for its exceptional robustness. The hopper is constructed from 3mm steel plate, while the base—exposed to the highest stresses—is reinforced with 5mm thick steel. The entire unit is double-sided welded, guaranteeing full leak-proof integrity, which is crucial when collecting oily swarf or waste containing coolants. The top edge features additional reinforcement, ensuring structural stability even when fully loaded with heavy scrap.

Safe discharge system

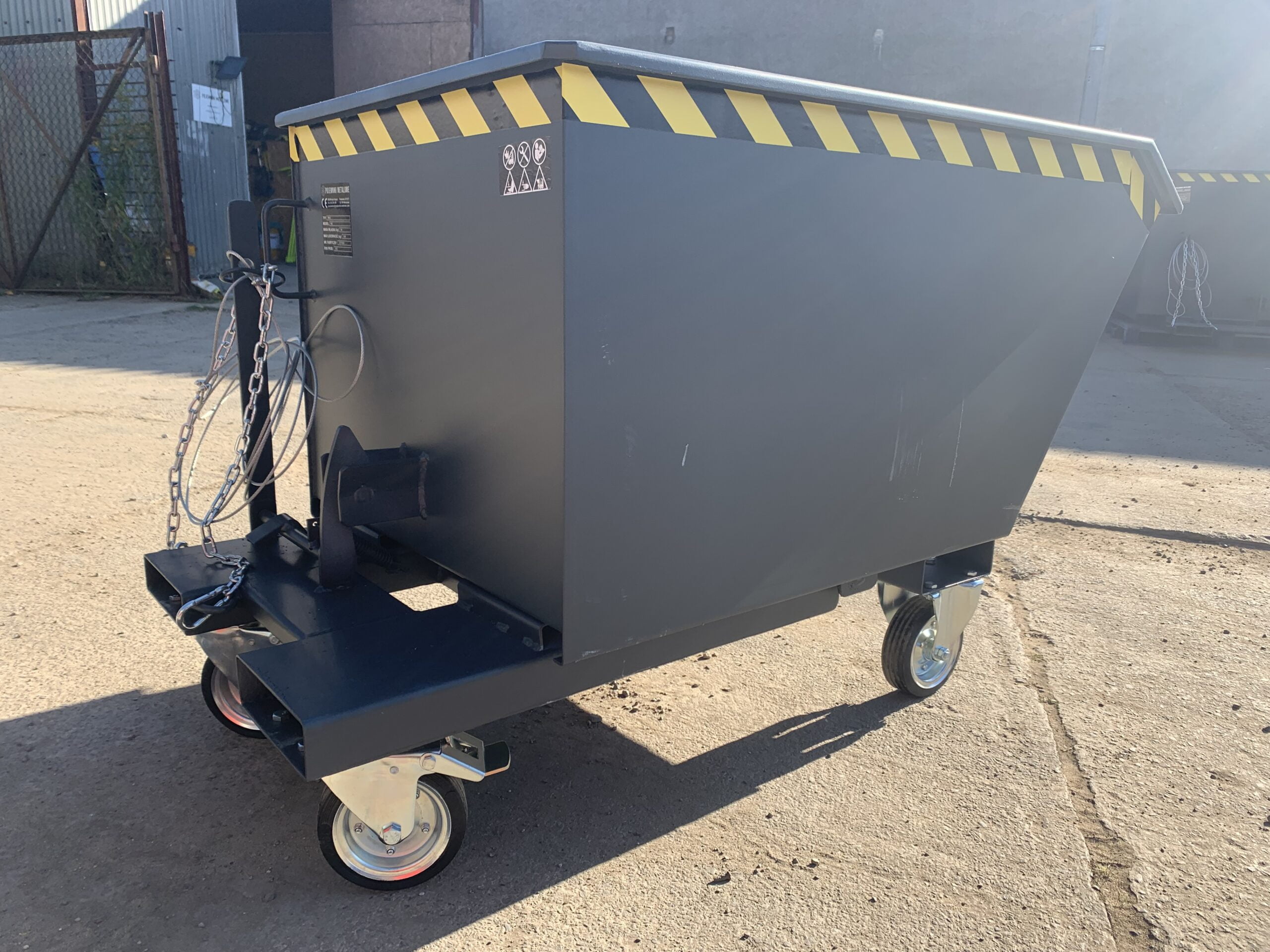

Operating the container is intuitive and safe. The skip is equipped with a lever located on the rear wall, used to release the lock and empty the contents. The mechanism features a safety catch to prevent accidental tilting during forklift transport. Thanks to its high load capacity while maintaining a low height, the PMUC 300 optimises logistical processes in densely packed production halls.

Technical specification and finish

• Steel thickness: 3 mm (hopper) / 5 mm (base)

• Leak-proof: Yes (double-sided welds)

• Mechanizm: Dźwignia z blokadą przechyłu

• Coating: Primer + Polyurethane paint

• Features: Low profile (ideal for under-machine use)

The container is protected against corrosion with polyurethane paints, which create a smooth coating. This facilitates quick cleaning of the hopper and prevents waste from adhering to the walls.

Choose the PMUC 300 skip if you need a low, leak-proof, and armoured container for production machinery.
