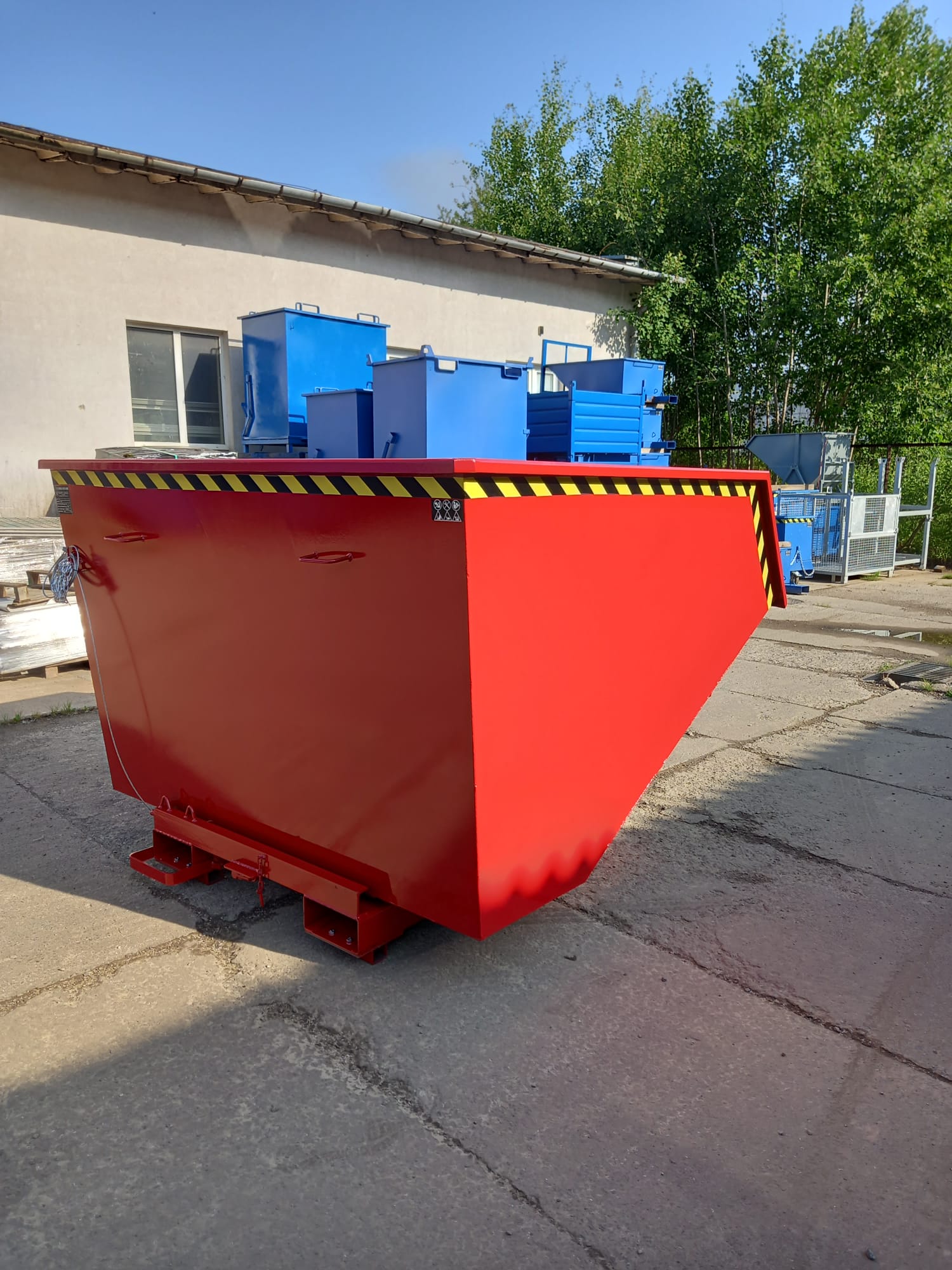

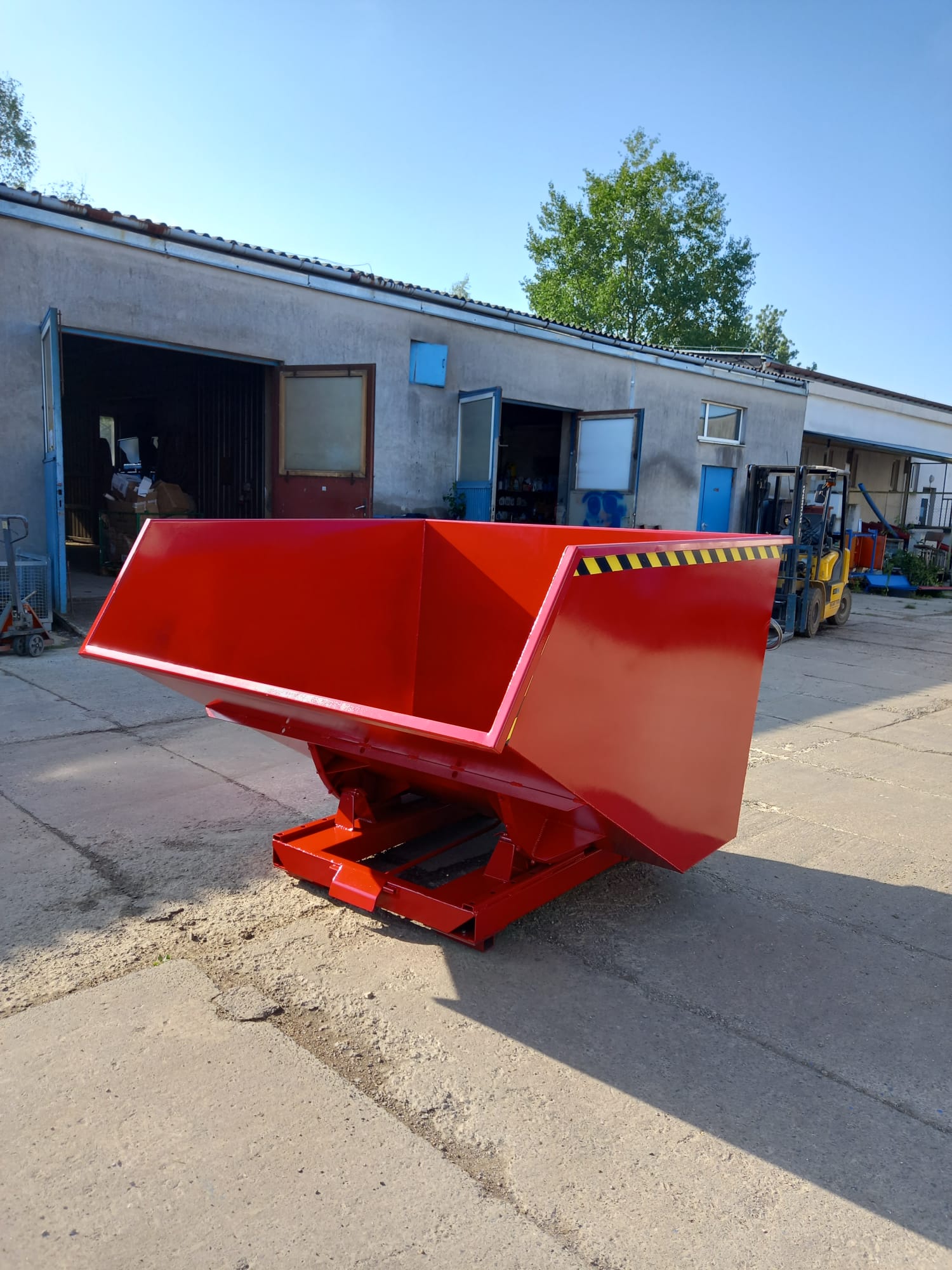

TK 3300 Self-Tipping Skip

Description

The TK 3300 is the flagship model in our self-tipping skip series, offering the maximum available capacity on the market. This Heavy-Duty solution is designed for the largest industrial plants, sawmills, and recycling companies where standard containers fall short. The TK 3300 radically optimises internal logistics by allowing the transport of massive waste volumes in a single cycle.

Construction for Extreme Tasks

Given the immense dimensions and potential load weight, structural rigidity is a critical parameter. The TK 3300 is built to withstand extreme stress:

• Reinforced Base (4mm): The foundation is manufactured from thick 4mm steel plate. This is essential to prevent floor deformation under the weight of several tonnes of material (e.g., scrap metal or wet swarf).

• Sztywny zbiornik (3 mm): Ściany wykonane z blachy 3 mm są wsparte rozbudowanym systemem wzmocnień i ożebrowania, co gwarantuje stabilność geometryczną kontenera nawet przy pełnym wypełnieniu.

Dual Discharge System (Operator Assistance)

Emptying such a vast container manually would be difficult and unsafe; therefore, the TK 3300 utilises the kinetics of the forklift:

1. Automatic System (Pressure Plate): The operator approaches the collection skip and presses the front pressure plate against its edge. The mechanism releases the lock, and the skip empties automatically via gravity and momentum – without the operator leaving the cab.

2. Manual System (Lever): A lever at the rear of the base allows for manual release, useful for discharging onto stockpiles or in non-standard locations.

Uncompromising Safety for Large Scales

Transporting the TK 3300 requires top-tier Health & Safety solutions:

• Fork Security Lock: A specialised safety foot on the left fork pocket “clamps” the skip onto the forks, preventing it from sliding off during sudden braking – vital for workplace safety at this mass.

• Transport Bolting: A solid lock at the rear of the base prevents uncontrolled tilting while driving over uneven ground.

Premium Anti-Corrosion Protection

Due to its size, the TK 3300 is often stored outdoors:

• Wet-Painting: The application of a high-grade primer and polyurethane topcoat creates a durable, sealed barrier that protects the steel from rain, snow, and rust.

• Easy Cleaning: The smooth internal finish ensures material slides out easily and does not stick to the walls.
