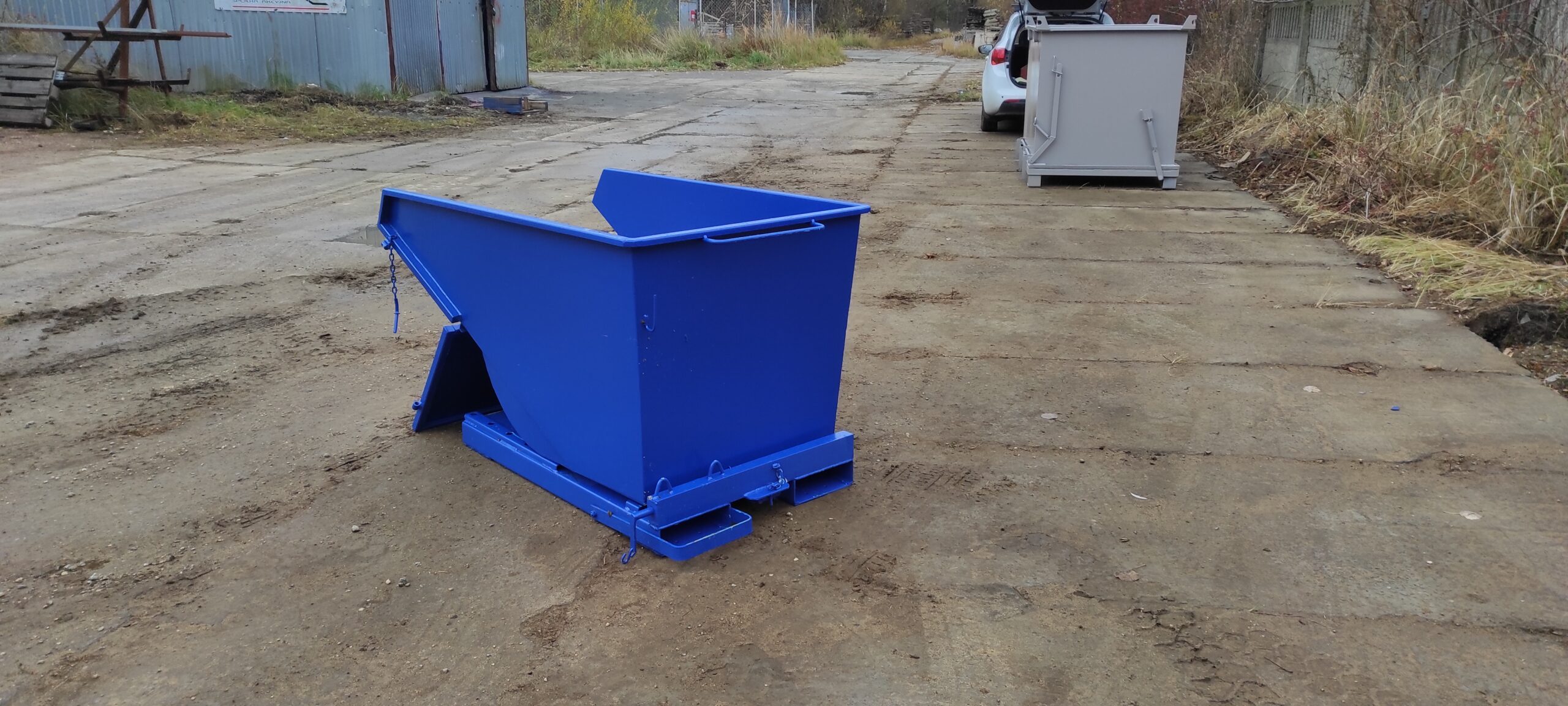

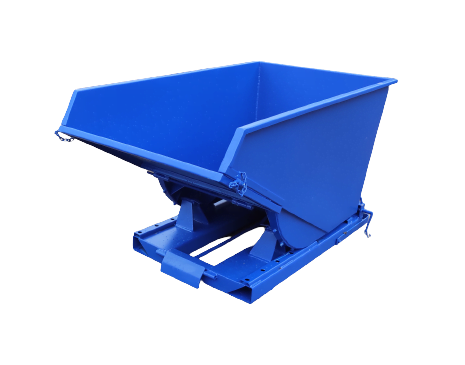

TKO Self-Tipping Skip with Drop-Down Front

Description

The TKO self-tipping skip is an advanced version of the classic forklift container, enhanced with a highly functional modification: a drop-down front wall. This solution revolutionises workplace ergonomics, allowing for easy material loading from ground level—perfect for wheelbarrow access or manual loading of heavy items without excessive lifting.

Functionality: Drop-Down Front Door

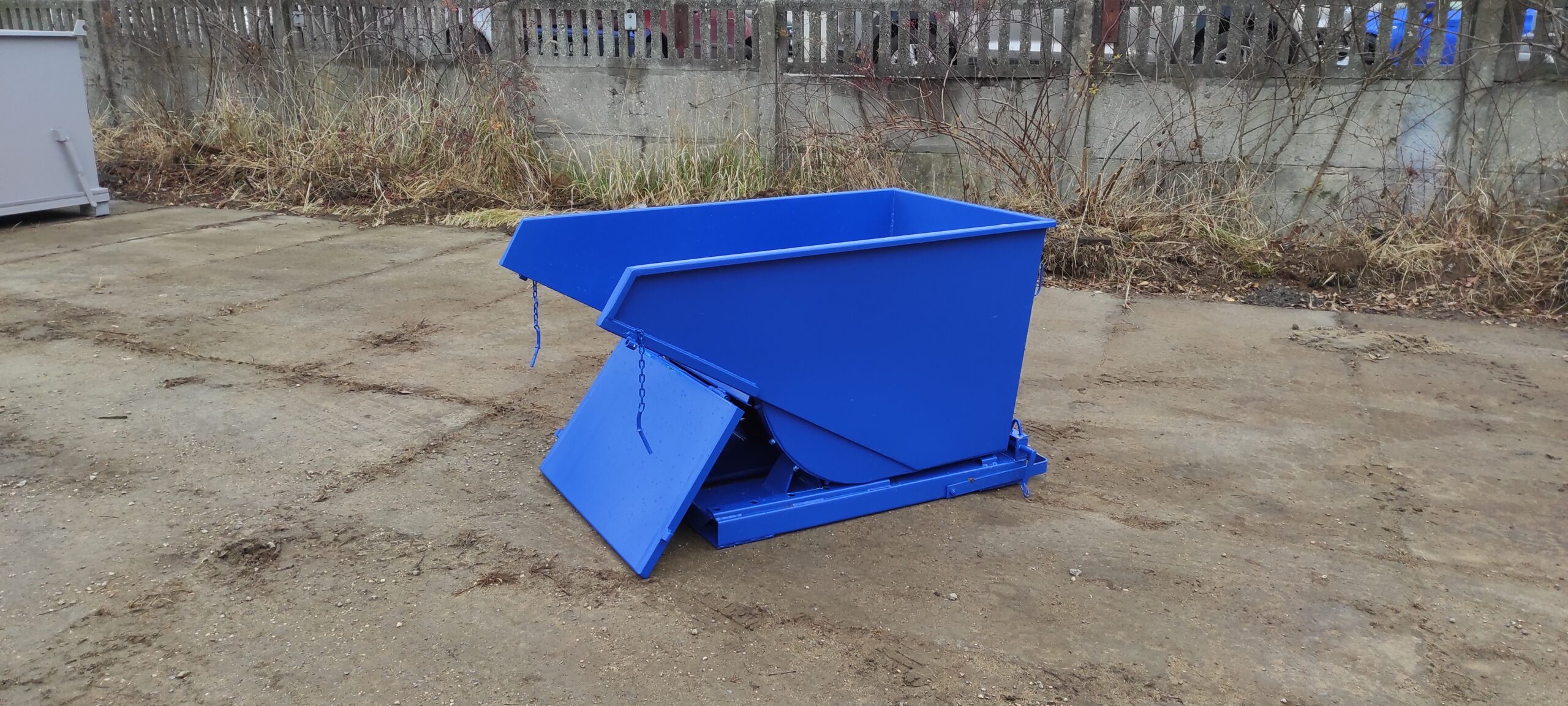

The standout feature of the TKO series is the front gate, which can be easily lowered to create a loading ramp or an open workspace.

• Locking System: In the closed position, the wall is secured by robust latches on both sides, ensuring the gate remains firmly shut during transport.

• Versatility: An ideal solution for construction sites, carpentry workshops, and warehouses where waste is often delivered via wheelbarrows or hand trucks.

Robust & Sealed Construction

Just like our standard models, the TKO series prioritises uncompromising durability:

• Heavy-Duty Steel: The hopper is made from 3mm steel plate, while the supporting base is reinforced with 4mm steel.

• Leak-Proof Main Body: The body features double-sided welding, providing exceptional structural strength and ensuring the main basin remains leak-proof (when the gate is closed).

• Reinforcements: Additional ribbing ensures the container resists deformation even under intensive industrial use.

Dual Discharge System (Operator Comfort)

Despite the front-wall modification, the TKO maintains full self-tipping functionality with two operational modes:

1. Automatic Mode (Pressure Plate): The operator presses the pressure plate at the front of the base against the edge of a larger skip to release the lock and tilt the container without leaving the forklift.

2. Manual Mode (Lever/Cable): The release lever can be operated manually from the ground or remotely via a steel cable from the forklift cab.

Transport Safety

The TKO model is designed to meet the highest Health and Safety standards

• Locking foot: A special safety device on the forklift pocket prevents the forklift from accidentally slipping off the forks (e.g. when braking).

• Tilt lock: The locking mechanism prevents uncontrolled tilting of the tank while driving.
