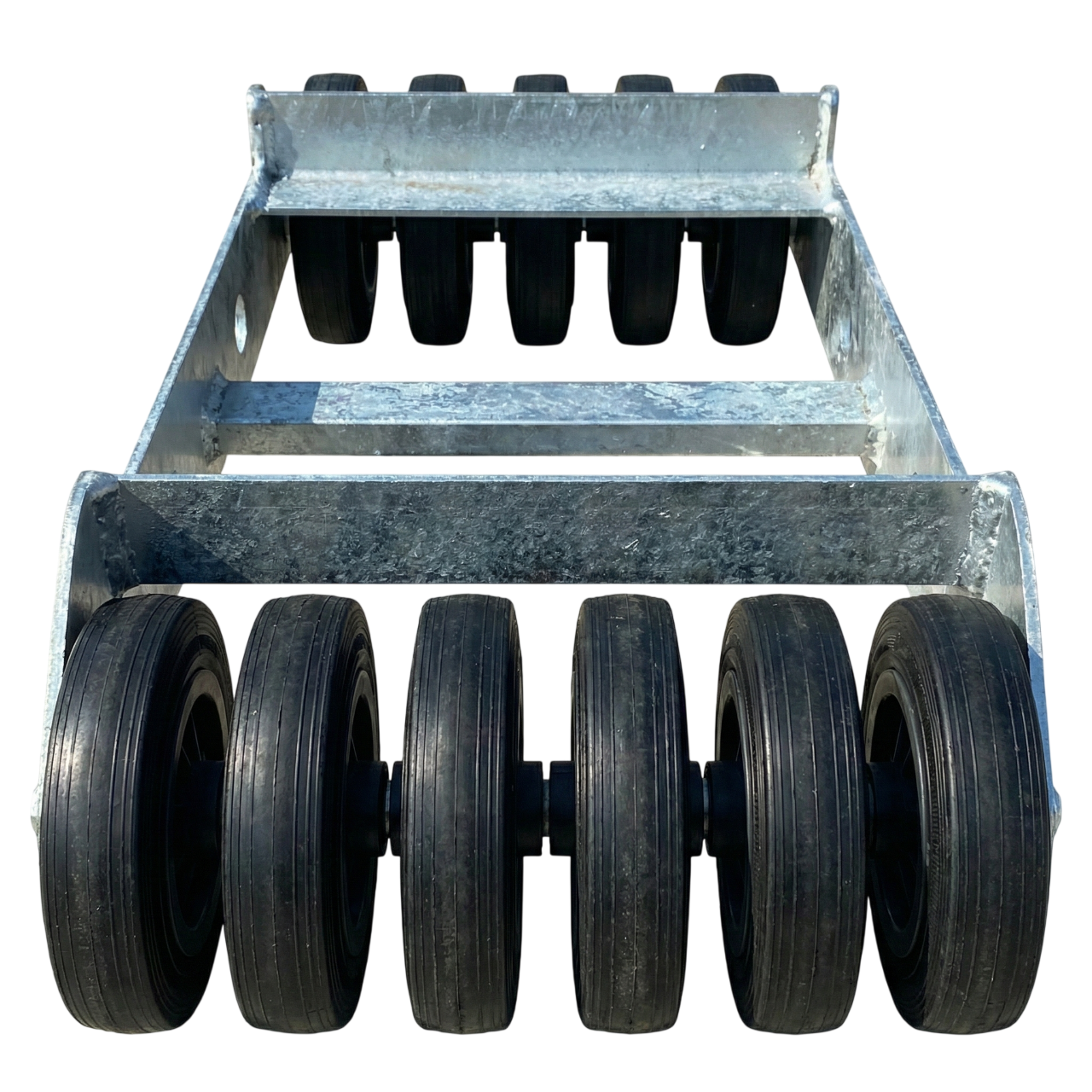

Wheel Dolly for Damaged Wheel XP/16STD – Service Roller

Description

The wheel dolly for a damaged wheel (model XP/16STD) is a specialized transport roller designed to facilitate loading and unloading of vehicles with a damaged or locked suspension system. It is widely used by roadside assistance services, body shops, and automotive repair workshops.

Model characteristics: Wheel dolly for damaged wheel

The presented model has been designed for intensive use in demanding conditions. Its construction features parameters that ensure stability and operational safety.

• Reinforced construction: The dolly frame is made of high-quality steel plate with a thickness of 6 mm. The roller axle is supported directly by the frame, preventing lateral deflection under heavy loads.

• Anti-corrosion protection: The entire unit is hot-dip galvanized, providing long-term protection of the steel against corrosion, road salt, and moisture.

• Versatility: The cradle design allows the dolly to be positioned not only under the wheel, but also directly under the sill, suspension arm, subframe, or engine.

Running gear and load capacity

The wheel dolly for a damaged wheel is equipped with a running system adapted for heavy loads:

• Roller system: The set consists of 10 rollers (5 per side) mounted on a shaft with a diameter of 20 mm.

• Roller type: Made of rubber-polyamide material with a diameter of 16 cm. The increased diameter makes it easier to overcome uneven surfaces, such as loading ramps on recovery trucks.

• Load capacity: The static load capacity of the structure is 1,200 kg, enabling safe handling of passenger cars and light commercial vehicles (load capacity per roller up to 120 kg).

• Securing: The frame includes 4 technical mounting holes, facilitating the attachment of transport straps and stabilization of the load.

This dolly provides solid support during emergency vehicle relocation, minimizing the risk of damage to the ground surface or suspension components.
